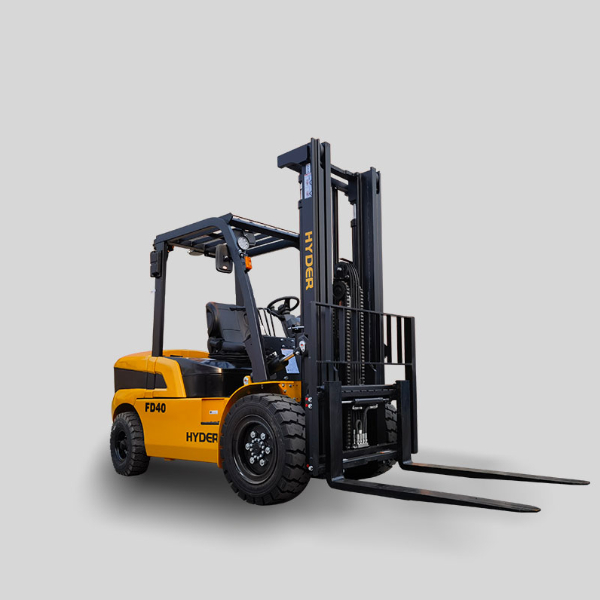

Hyder Diesel Forklift 3.5ton 4ton with Solid tyres

FD35 /FD40

FG35/FG40 with Nissan K25 engine

facebooktwitteryoutubelinkedin
Contact Us

Inquire Now

Descriptions

  • All-Terrain Dominance: Reinforced mast and pneumatic tires for muddy fields or gravel yards.

  • Multi-Attachment Ready: Compatible with clamps, rotators, or bale spears for diverse loads (e.g., cotton bales, cement bags).

  • Auto Hydraulic  System: Automatically adjusts fuel flow for heavy loads, reducing waste by 20%.

    Specifications 1 Manufacturer 　 HYDER
    2 Model Power shift T/M Manual shift T/M FD30T FD35T FD40T
    FD30C FD35C FD40C
    3 Load capacity kg 3000 3500 4000
    4 Load center mm 500 500
    5 Power unit 　 Diesel Diesel
    6 Operator type 　 Driver/seat Driver/seat
    7 Tire type Front/rear 　 Pneumatic Pneumatic
    8 Wheel Front/rear 　 2/2 2/2
    Dimension 9 Max. lifting height mm 3000 3000
    10 Free lift mm 145 150 135
    11 Fork size L ×W ×T mm 1070×122×45 1070×125×50 1070×125×50
    12 Tilt angle Mast forward/backward deg 6 / 12 6 / 12
    13 Overall length(without fork) mm 2750 2755 2915
    14 Total width mm 1225 1225 1225
    15 Mast height (fork lowering) mm 2070 2180 2180
    16 Overall height fork raised(with backrest) mm 4100 4100
    17 Height to head guard mm 2150 2070
    18 Turning raduis(outside) mm 2515 2515 2615
    19 Load distance mm 480 485 485
    20 Right angle stacking aisle mm 2545 2545 2600
    Performance 21 Speed Max.travelling full load km/h 18 20
    no load km/h 19.5 20
    22 Lifting full load mm/s 450 380 380
    no load mm/s 500 450 420
    23 Lowering full load mm/s 450 420 420
    no load mm/s 500 460 460
    24 Max. drawbar pull Power shift T/M       full/no load kg 1696/1190 1850/1250 2200/1000
    Manual shift T/M     full/no load kg 1696/1190 1850/1250 2200/1000
    25 Gradeability
    at 1.6km/h    		 Power shift T/M       full/no load % 15/18 15/18 16/20
    Manual shift T/M     full/no load % 19/20 15/18 16/20
    Weight 26 Truck weight 　 kg 4280 4535 5090
    27 Weight
    distribution    		 Full load front axle kg 6455 7320 8100
    rear axle kg 825 715 990
    28 No load front axle kg 1720 1825 1900
    rear axle kg 2560 2710 　
    Chassis & Wheels 29 Tires Number front/rear 　 2 / 2 2/2
    30 Model front 　 28×9-15-12PR 250-15-18PR
    31 rear 　 6.50-10-10PR 6.50-10-10PR
    32 Wheelbase 　 mm 1760 1860
    33 Tread Front mm 1000 1000 1000
    Rear mm 970 970
    34 Ground clearence At lowest point(mast) mm 130 130
    Shaft center mm 200 200
    35 Brake Service  brake 　 Hydraulic-foot pedal
    Parking brake 　 Mechanical-hand lever
    Drive line 36 Battery Voltage/capacity V/AH 12/100 12/100
    37 Engine Model 　 ISUZU C240 XINCHAI 490 ISUZU 4JG2
    Rated power KW/rpm 34.3/2500 36.8/2500 44.8/2450
    Rated torque N.m/rpm 138/1800 148/1800 186/1800
    Number of cylinder 　 4 4 4
    Displacement L 2.369 2.82 3.059
    38 Fuel tank capacity 　 L 60 60
    39 Transmission Speed forward/backward Power shift T/M Manual shift T/M 1-1 power shift T/M
    2-2 manual shift T/M
    40 Operating pressure Hydraulic system pressure Mpa 17.5 17.5

    Note: There's also GQ-4Y gasoline/LPG engine,Yanmar 4TNE98, Chinese Xinchai C495 diesel engine for option, and the specs will be little different.
