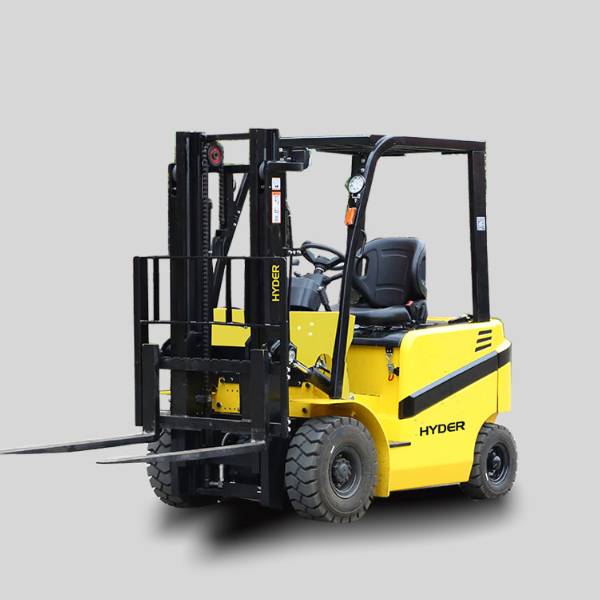

HYDER CPD XS Series Lithium Battery Forkift Truck 2ton
CPD20XS
1) Model: CPD20-XS
2) Capacity:2000kg
3) Double AC motor
4) Lifting height: duplex 3000mm
5) Tire: Pneumatic
6) Battery: 80V/206AH& 60A charge
7) Fork length 1070mm
8) Warranty: one year
9)Charging time: 3.5hours
10) Working time:5-6hours
11) Size:2385*1250*2170mm
12) Weight: 3670kgs/pcer
Contact Us
Inquire Now
Descriptions
|
|||||||
|
Model |
|
|
CPD15-XS |
CPD20-XS |
CPD25-XS |
CPD30-XS |
CPD35-XS |
|
Power source |
|
|
Lithium battery/lead acid battery |
||||
|
Operator type |
|
|
Seated |
Seated |
Seated |
Seated |
Seated |
|
Load Capacity |
Q |
kg |
1500 |
2000 |
2500 |
3000 |
3500 |
|
Load centre distance |
C |
mm |
500 |
500 |
500 |
500 |
500 |
|
Wheelbase |
L1 |
mm |
1400 |
1606 |
1606 |
1750 |
1780 |
|
Truck weight(with battery) |
|
|
2800 |
3670 |
3920 |
4500 |
5000 |
|
Axle loading with maximum load, front / rear |
|
|
3720/580 |
5030/640 |
5760/660 |
6695/805 |
7665/835 |
|
Axle loading without load, front / rear |
|
|
1280/1520 |
1840/1830 |
1770/2150 |
2020/2480 |
2235/2765 |
|
Wheels, Drive Train |
|||||||
|
Tyres |
|
|
Pneumatic/pneumatic |
Pneumatic/solid |
|||
|
Track width( Centre of tyre), front |
W3 |
mm |
930 |
970 |
970 |
1006 |
1006 |
|
Track width( Centre of tyre), rear |
W2 |
mm |
910 |
970 |
970 |
986 |
970 |
|
Tyre dimension(front) |
|
|
6.50-10-12pr |
7.00-12-14pr |
7.00-12-14pr |
28*9-15-14pr |
28*9-15-14pr |
|
Tyre dimension (rear) |
|
|
16*6-8-16pr |
18*7-8-14pr |
18*7-8-14pr |
18*7-8 |
200/50-10 |
|
Dimensions |
|||||||
|
Mast Tilt, Forwards/backwards |
/ |
|
6/10 |
6/12 |
6/12 |
6/12 |
6/12 |
|
Height with mast lowered |
H1 |
mm |
1995 |
2000 |
2000 |
2070 |
2120 |
|
Lifting height |
|
|
3000 |
|
|
|
|
|
Height with mast raised |
|
|
4065 |
4100 |
4100 |
4217 |
4217 |
|
Free lift |
H3 |
mm |
155 |
150 |
150 |
155 |
160 |
|
Height to top of overhead guard |
H4 |
mm |
2140 |
2170 |
2170 |
2180 |
2180 |
|
Seat height |
|
mm |
1150 |
1194 |
1194 |
1204 |
1204 |
|
Fork size (l*w*t) |
T*w*l4 |
mm |
35*100*920 |
40*120*1070 |
40*120*1070 |
45*122*1070 |
45*122*1070 |
|
Overall length(fork excluded) |
L |
mm |
2185 |
2385 |
2385 |
2545 |
2580 |
|
Overall width |
W1 |
mm |
1120 |
1250 |
1250 |
1250 |
1250 |
|
Ground clearance under mast, with load |
H5 |
mm |
110 |
130 |
|||
|
Ground clearance at center of wheelbase, with load (forks lowered) |
H6 |
mm |
120 |
130 |
130 |
135 |
135 |
|
Working aisle width with 1000 x1200 mm pallets, crosswise |
Ast |
mm |
3510 |
3730 |
3730 |
3897 |
3932 |
|
Working aisle width with 800 x1200 mm pallets, lengthwise |
Ast |
mm |
3708 |
3930 |
3930 |
4097 |
4132 |
|
Performance |
|||||||
|
Travel speed, load/ unload |
|
km/h |
14/14 |
||||
|
Lifting speed, load/ unload |
|
m/s |
0.31/0.43 |
0.31/0.43 |
0.29/0.43 |
0.31/0.43 |
0.29/0.43 |
|
Lowering speed, laden/unload |
|
m/s |
0.4/0.4 |
0.45/0.5 |
0.45/0.5 |
0.47/0.5 |
0.47/0.5 |
|
Maximum drawbar pull, with / without load |
|
N |
8000 |
11000 |
12000 |
14000 |
16000 |
|
Acceleration time(10m) with / without load |
|
s |
|
|
|
|
|
|
Service brakes |
|
|
mechanical / hydraulic |
||||
|
Gradeability, with / without load |
|
% |
15/20 |
||||
|
Battery voltage /nominal capacity |
|
v/ah |
80/150 |
80/206 |
80/206 |
80/206 |
80/280 |
|
Battery weight |
|
kg |
245 |
260 |
260 |
330 |
330 |
|
Drive motor power s2-60 minutes |
|
kw |
8 |
10 |
10 |
12 |
12 |
|
Lift motor power, S3-15 minutes |
|
kw |
10 |
11.5 |
11.5 |
12 |
12 |
|
Control type |
|
|
MOS/AC |
||||
|
** company reserves the right to change product design and specifications without prior notice. |
|||||||
