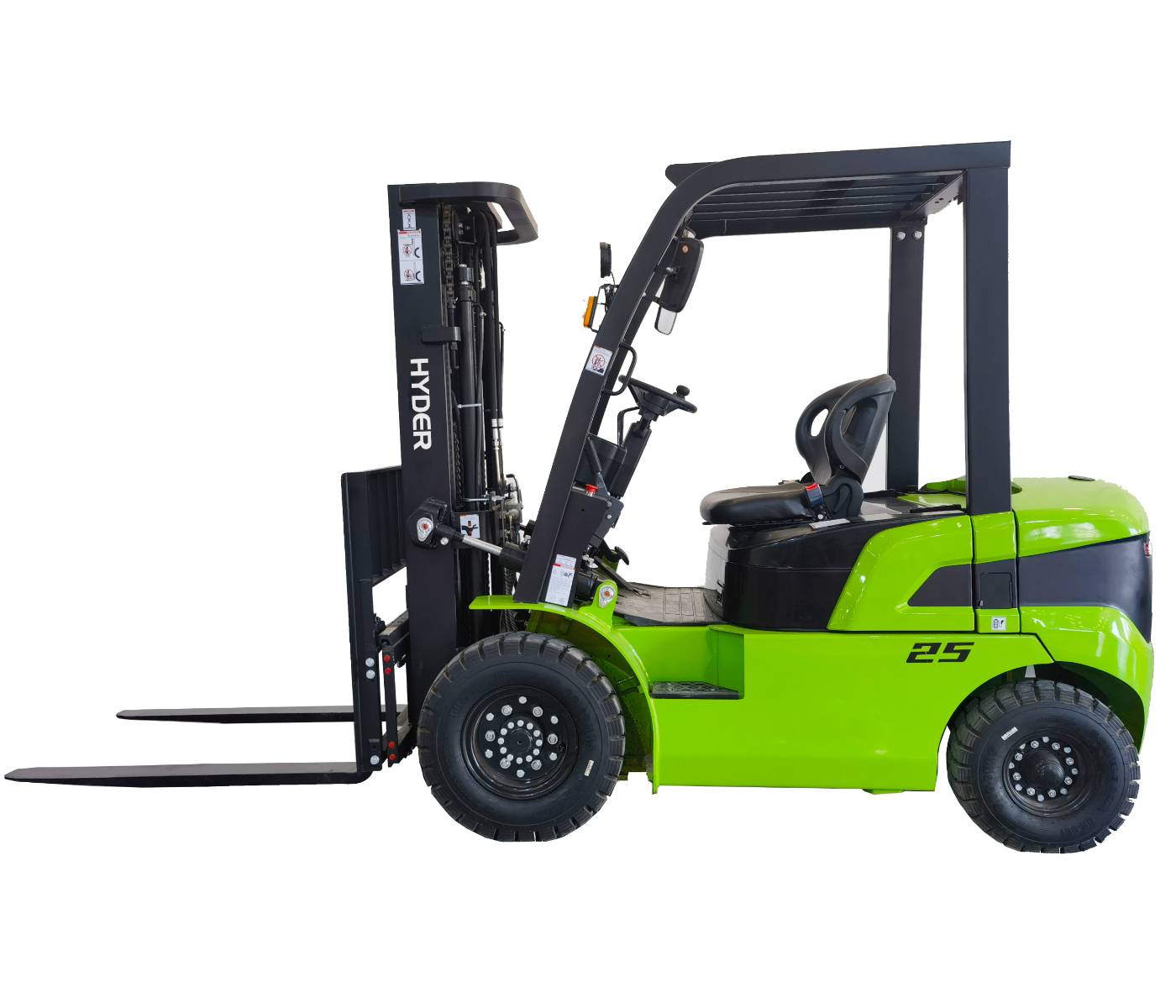

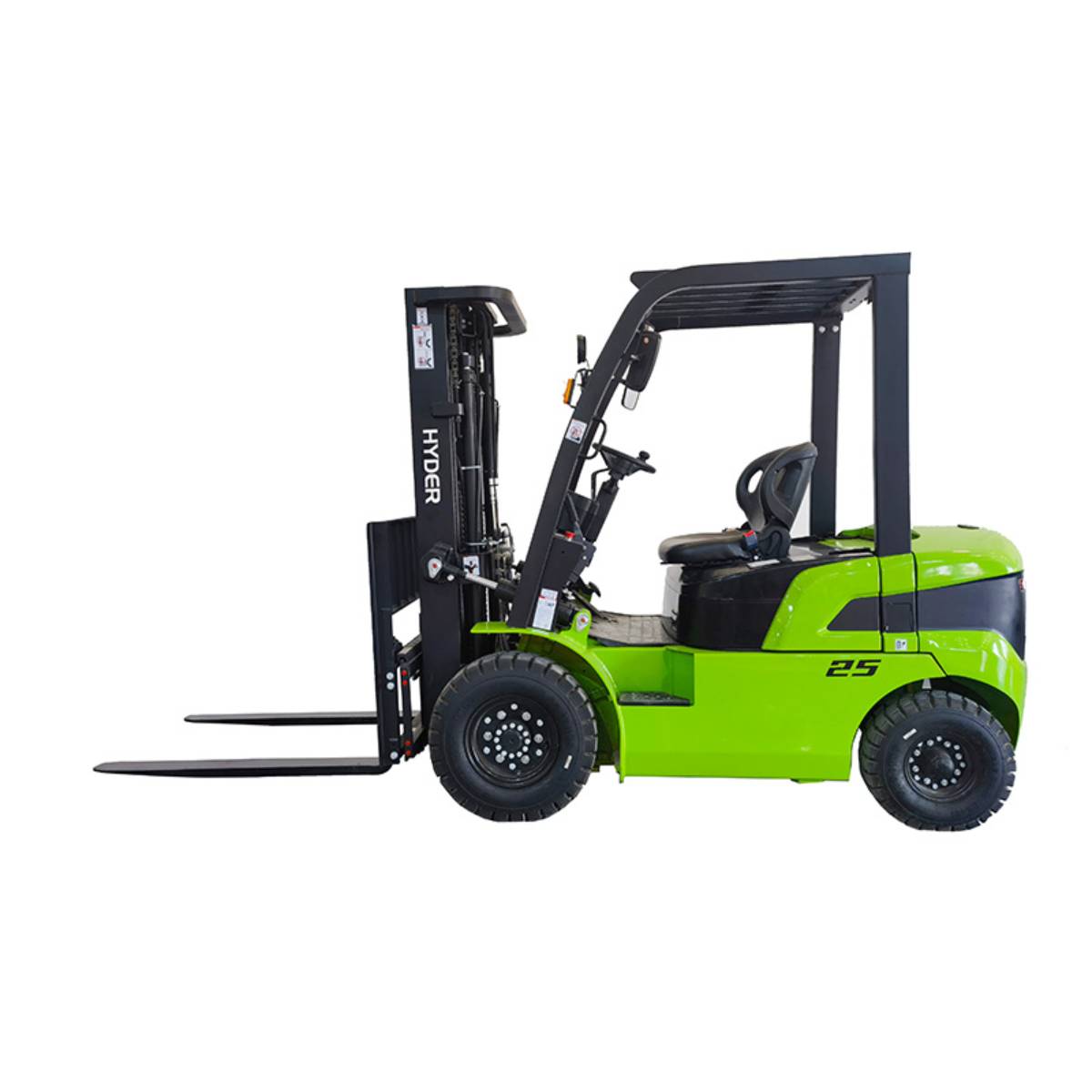

Hyder H serie ICE Forklift 2.5Ton Lithium Battery Forklift Truck FB25H
FB25H
The HYDER H Serie ICE foklift 2.5ton lithium battery forklift is designed to excel in demanding material handling operations. Its advanced lithium battery technology and robust construction ensure it stands up to the rigors of heavy-duty use.
Contact Us
Inquire Now
Descriptions
Product Details:
The HYDER FB25H is a 2.5ton lithium battery forklift designed to excel in demanding material handling operations. Its advanced lithium battery technology and robust construction ensure it stands up to the rigors of heavy-duty use.
Key Features:
-
Impressive Load Capacity: With a load capacity of 2500kg, the FB25H is well-suited for a wide range of applications, ensuring efficient handling of various loads.
-
Advanced Lithium Battery: Powered by an 80V230AH lithium battery, this forklift provides consistent and reliable power for extended operation.
-
Quick Charging: The 80V76A charger enables rapid charging, with a 3hours charging time, allowing for minimal downtime and maximum productivity.
-
Extended Operation Time: With a working duration of 4-5 hours on a full charge, this forklift is designed for continuous use, ensuring uninterrupted workflow.
-
Sturdy Pneumatic Tires: Equipped with pneumatic tires, the forklift ensures stability and traction, even in challenging terrains.
-
Compact Design: With dimensions of 2540*1164*2070mm, this forklift is designed for maneuverability in tight spaces and narrow aisles.
-
Durable and Reliable: Weighing 3600kg, the FB25H is built to withstand the rigors of heavy-duty use, ensuring longevity and performance.
Customizable Options:
- Standard model with a 3-stage 4.5m mast, side shift, solid tires, and a closed cabinet.
- Lithium battery options (80V):
- Lithium battery 280AH with 150A charger
- Lithium battery 350AH with 200A charger
- Lithium battery 410AH with 200A charger
- Lithium battery 460AH with 200A charger
Elevate your material handling capabilities with the HYDER FB25H 2.5ton lithium battery forklift. Contact us today for tailored solutions.
| Manufacturer | -- | -- | HYDER |
| Model | -- | -- | FB25H |
| Load capacity | -- | kg | 2500 |
| Load center | -- | mm | 500 |
| Power unit | -- | -- | Lithium Battery |
| Operator type | -- | -- | Driver / Seat |
| Tire type | Front / Rear | -- | Pneumatic |
| Wheel (X=driven) | Number Front / Rear | -- | 2 X 2 |
| Max. lifting height | -- | mm | 3000 |
| Free lift | -- | mm | 120 |
| Fork size | L*W*T | mm | 1070*122*40 |
| Mast Tilt | Front / Rear | -- | 6 / 12 |
| Overall length(without fork) | -- | mm | 2540 |
| Total width | -- | mm | 1164 |
| Mast height (fork lowering) | -- | mm | 2000 |
| Overall height fork raised | -- | mm | 4000 |
| Height to head guard | -- | mm | 2070 |
| Turning raduis(outside) | -- | mm | 2230 |
| Front overhang | -- | mm | 455 |
| Min. right angle aisle width | -- | mm | 2240 |
| Wheelbase | -- | mm | 1600 |
| Tread | Front | mm | 970 |
| Rear | mm | 970 | |
| Ground clearence | At lowest point (mast) | mm | 115 |
| At lowest point (Axle Center) | mm | 170 | |
| Speed | Max travelling Full / No load | km/h | 15 / 16 |
| Lifting Full / No load | mm/s | 380 / 450 | |
| Lowering Full / No load | mm/s | 490 / 410 | |
| Maximum traction force | Full / No load | kg | 2000 / 1500 |
| Gradeability | Full / No load | % | 15 / 20 |
| Service weight | -- | kg | 3600 |
| Tire model | front | -- | 7.00-12-12PR |
| Rear | -- | 6.00-9-10PR | |
| Brake | Service brake | -- | Hydraulic-foot pedal |
| Parking brake | -- | Mechanical | |
| Lithium battery | Voltage / Capacity | V/Ah | 76.8V/230Ah |
