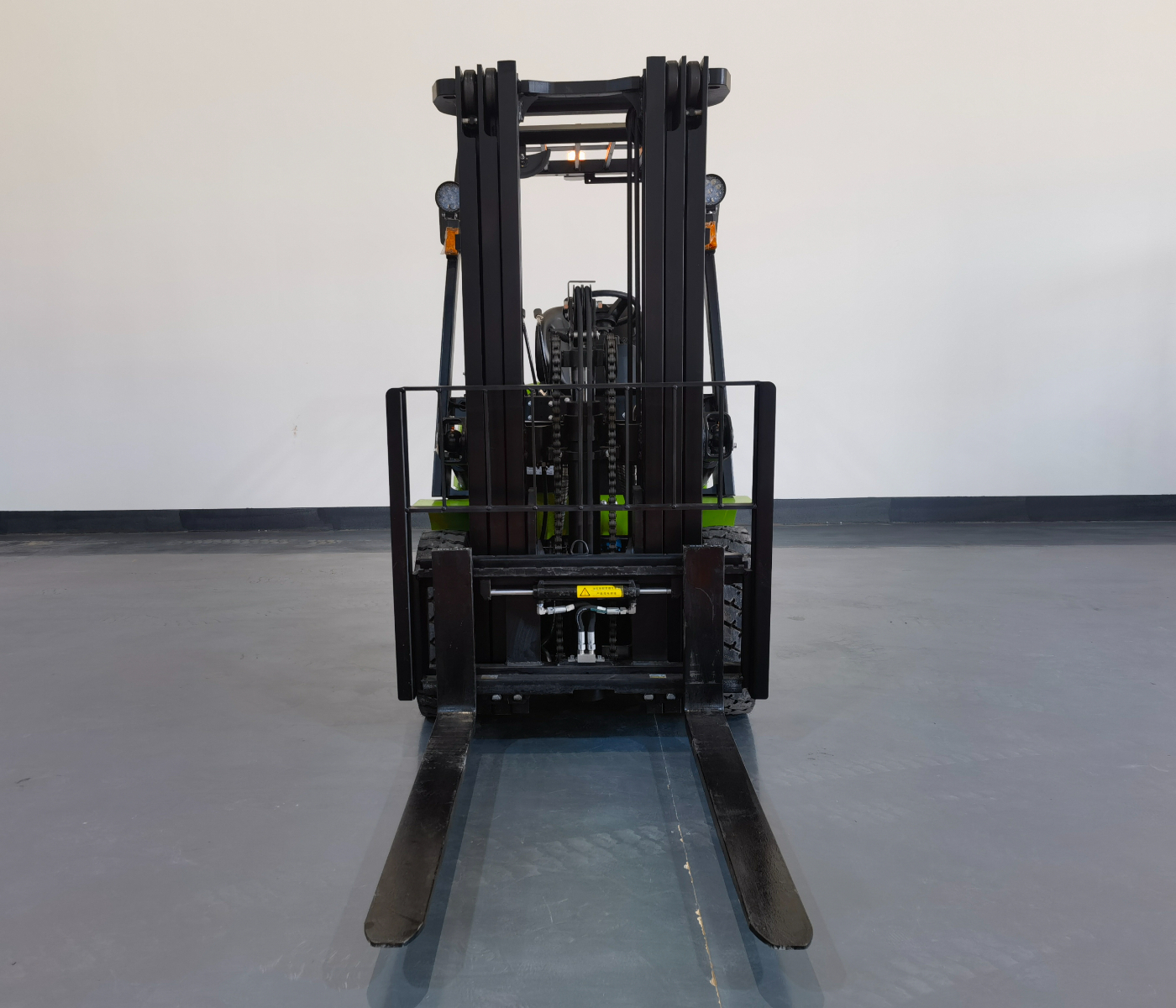

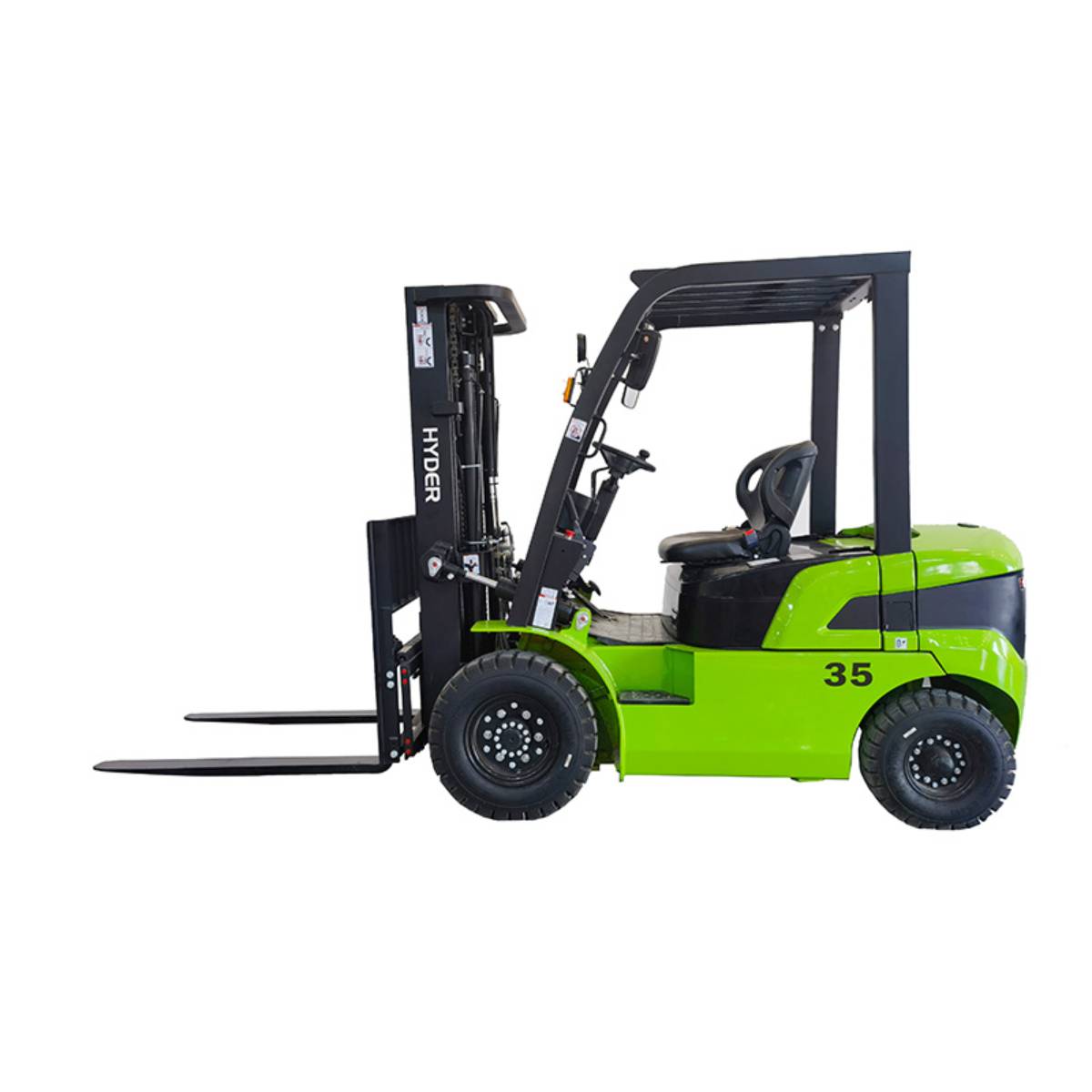

Hyder H serie ICE Forklift 3.5ton Lithium Battery Powered Forklift FB35H

Product Details:

The HYDER FB35H is a high-capacity 3.5-ton lithium battery forklift designed for demanding material handling operations. Equipped with advanced lithium battery technology and built to withstand heavy-duty use, it ensures optimal performance in challenging environments.

Key Features:

1. Impressive Load Capacity: With a load capacity of 3500kg, the FB35H excels in handling heavy loads, making it suitable for a wide range of applications.

2. Advanced Lithium Battery: The forklift is powered by an 80V350AH lithium battery, providing reliable and consistent power for extended operation.

3. Quick Charging: The 80V150A charger allows for fast charging, with a 3-hour charging time, ensuring minimal downtime and increased productivity.

4. Extended Operation Time: With a working duration of 4-5 hours on a full charge, this forklift is well-suited for continuous operations, ensuring uninterrupted workflow.

5. Sturdy Pneumatic Tires: The forklift features pneumatic tires, providing stability and traction, even in challenging terrains.

6. Compact Design: With dimensions of 2755*1225*2150mm, this forklift is designed for maneuverability in tight spaces and narrow aisles.

7. Durable and Reliable: Weighing 4600kg, the FB35H is built to withstand the rigors of heavy-duty use, ensuring longevity and performance.

Customizable Options:

• Standard model with a 3-stage 4.5m mast, side shift, solid tires, and a closed cabinet.
• Lithium battery options (80V):
  • Lithium battery 410AH with 200A charger
  • Lithium battery 460AH with 200A charger

Elevate your material handling capabilities with the HYDER FB35B 3.5-ton lithium battery forklift. Contact us today for tailored solutions



Manufacturer	--	--	HYDER
Model	--	--	FB35H
Load capacity	--	kg	3500
Load center	--	mm	500
Power unit	--	--	Lithium Battery
Operator type	--	--	Driver / Seat
Tire type	Front / Rear	--	Pneumatic
Wheel (X=driven)	Number      Front / Rear	--	2 X 2
Max. lifting height	--	mm	3000
Free lift	--	mm	150
Fork size	L*W*T	mm	1070*125*50
Mast Tilt	Front / Rear	--	6 / 12
Overall length(without fork)	--	mm	2755
Total width	--	mm	1225
Mast height (fork lowering)	--	mm	2180
Overall height fork raised	--	mm	4100
Height to head guard	--	mm	2150
Turning raduis(outside)	--	mm	2515
Front overhang	--	mm	485
Min. right angle aisle width	--	mm	2545
Wheelbase	--	mm	1760
Tread	Front	mm	1000
	Rear	mm	970
Ground clearence	At lowest point (mast)	mm	130
	At lowest point (Axle Center)	mm	200
Speed	Max travelling     Full / No load	km/h	15 / 16
	Lifting                 Full / No load	mm/s	320 / 400
	Lowering             Full / No load	mm/s	450 / 400
Gradeability	Full / No load	%	15
Service weight	--	kg	4600
Tire model	front	--	28x9-15-12PR
	Rear	--	6.50-10-10PR
Lithium battery	Voltage / Capacity	V/Ah	76.8V/350Ah
