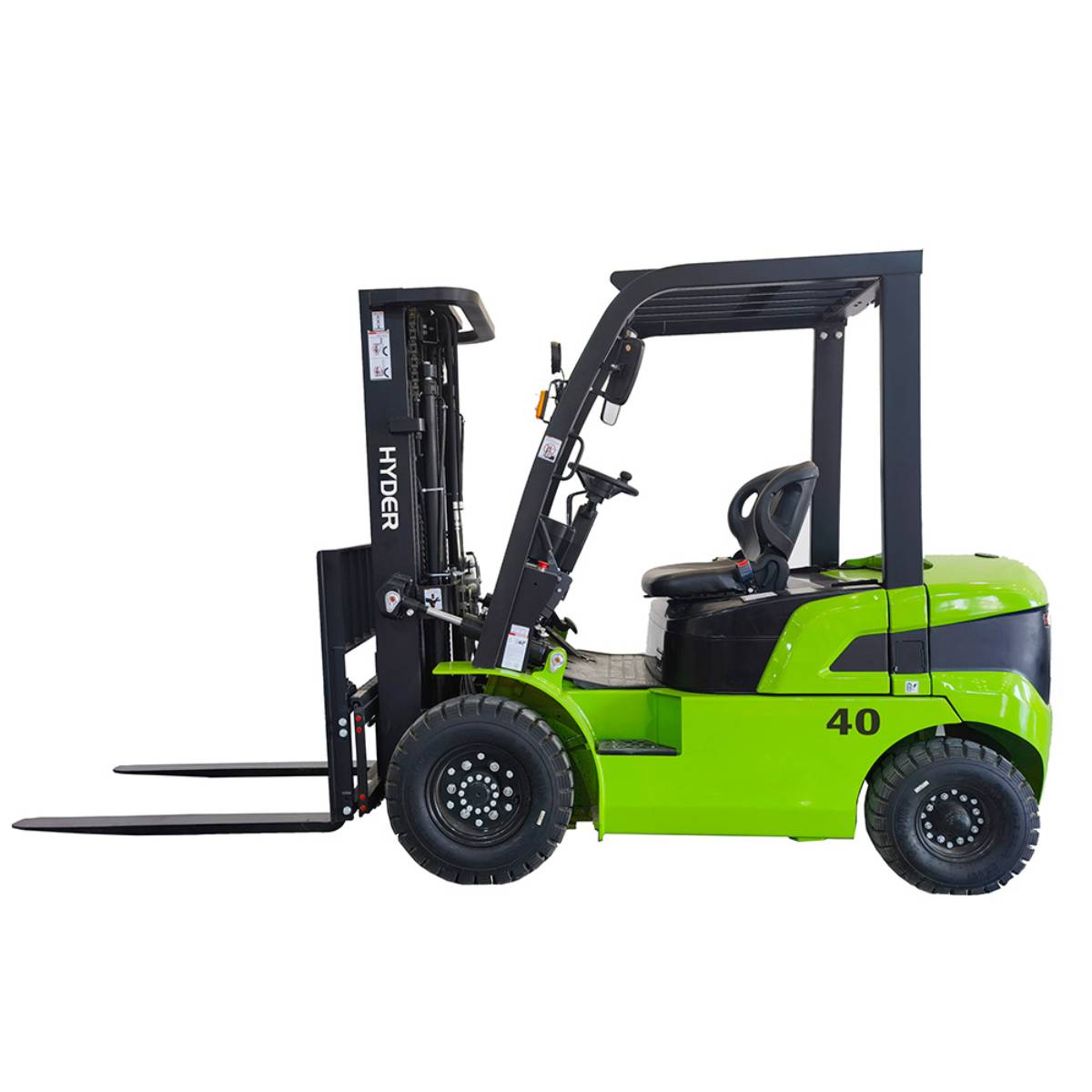

Hyder H serie ICE Forklift 4Ton Lithium Battery Forklift Truck FB40H
FB40H
Experience the power of the HYDER H Series ICE 4-ton lithium battery forklift (Model: FB40H) with a load capacity of 4000kg and a standard lifting height of 3m. This forklift, equipped with a 80V410AH lithium battery, is engineered for maximum efficiency and performance in material handling.
Contact Us
Inquire Now
Descriptions
The HYDER H Series ICE 4-ton lithium battery forklift is designed for demanding material handling tasks in industrial settings. Its robust construction and advanced lithium battery technology make it an excellent choice for heavy-duty operations.
Key Features:
-
Impressive Load Capacity: With a load capacity of 4000kg, the FB40H is capable of handling large and heavy loads with ease.
-
Powerful Lithium Battery: The forklift is powered by 80 410AH lithium battery, providing a reliable and consistent power source for extended operation.
-
Efficient Charging: The 80V200A charger ensures quick charging, with a charging time of only 2 hours, allowing for minimal downtime and increased productivity.
-
Long Operation Time: With a working time of 4-5 hours on a full charge, this forklift is designed for continuous use, ensuring uninterrupted workflow.
-
Durable Pneumatic Tyres: Equipped with pneumatic tyres, the forklift offers stability and maneuverability, making it suitable for various environments.
-
Compact and Sturdy: the forklift is designed to navigate through tight spaces while its 5150kg weight ensures durability and stability.
Tailor the battery capacity to suit your specific operational requirements. Elevate your material handling operations with the HYDER H Series 4ton lithium battery forklift. Contact us today for customized solutions.
| Manufacturer | -- | -- | HYDER |
| Model | -- | -- | FB40H |
| Load capacity | -- | kg | 4000 |
| Load center | -- | mm | 500 |
| Power unit | -- | -- | Lithium Battery |
| Operator type | -- | -- | Driver / Seat |
| Tire type | Front / Rear | -- | Pneumatic |
| Wheel (X=driven) | Number Front / Rear | -- | 2 X 2 |
| Max. lifting height | -- | mm | 3000 |
| Free lift | -- | mm | 135 |
| Fork size | L*W*T | mm | 1220*125*55 |
| Mast Tilt | Front / Rear | -- | 6 / 12 |
| Overall length(without fork) | -- | mm | 2900 |
| Total width | -- | mm | 1225 |
| Mast height (fork lowering) | -- | mm | 2190 |
| Overall height fork raised | -- | mm | 4130 |
| Height to head guard | -- | mm | 2150 |
| Turning raduis(outside) | -- | mm | 2650 |
| Front overhang | -- | mm | 485 |
| Min. right angle aisle width | -- | mm | 2620 |
| Wheelbase | -- | mm | 1860 |
| Tread | Front | mm | 1060 |
| Rear | mm | 970 | |
| Ground clearence | At lowest point (mast) | mm | 130 |
| At lowest point (Axle Center) | mm | 180 | |
| Speed | Max travelling Full / No load | km/h | 15 / 16 |
| Lifting Full / No load | mm/s | 320 / 380 | |
| Lowering Full / No load | mm/s | 420 / 360 | |
| Gradeability | Full / No load | % | 15 / 20 |
| Service weight | -- | kg | 5150 |
| Tire model | front | -- | 2.50-15-12PR |
| Rear | -- | 6.50-10 | |
| Lithium battery | Voltage / Capacity | V/Ah | 76.8V/410Ah |
