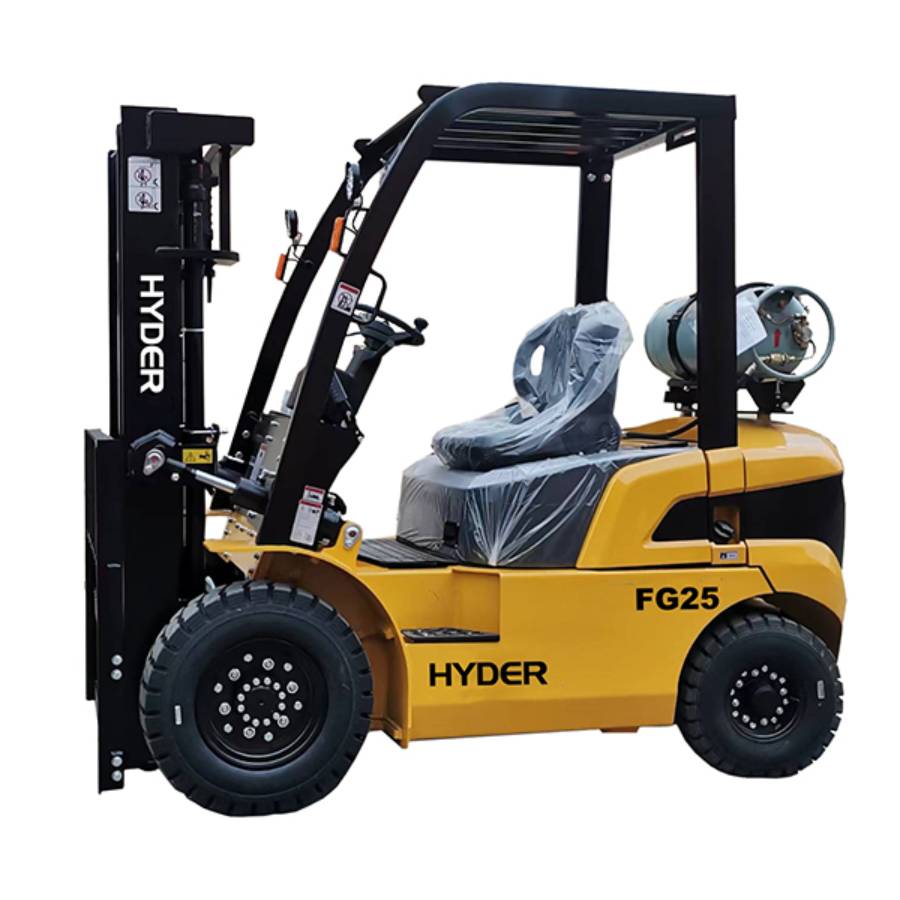

Hyder Gasoline Propane Forklift 2.5ton 3ton

LPG Duel Engine FG25 FG30

2.5t to 3t capacity

Mast height: 2stages or 3stages 3m-6m

Forged forks

brand pneumatic tire, strong grip

Chinese GQ-4Y,or Japanese Nissan or Kubota Euro V,EPA engine

Wide operating space and mast view

Digital instruments for more intuitive and accurate operation.

Toyota half enclosed seat with adjustable belt,comfortable for operator

Pure casting iron, one-piece counter weight,better stability

Kinds of attachment like side shift,fork positioner,bale/roll clamp,rotators and etc.

Welcome your OEM inquiry.

facebooktwitteryoutubelinkedin
Contact Us

Inquire Now

Descriptions

LPG forklift

Manufacturer   -- -- HYDER  HYDER
Model  -- -- FG25 FG30
Load capacity   -- kg 2500 3000
Load center   -- mm 500 500
Power unit   -- -- gasoline + LPG gasoline + LPG
Operator type   -- -- Driver / Seat   Driver / Seat
Tire type   Front / Rear  -- pneumatic pneumatic
Wheel  Front / Rear -- 2 / 2 2 / 2
Lifting height   -- mm 3000 3000
Free lift   -- mm 135 145
Fork size                L*W*T mm 1070*100*45 1070*125*50
Tilt range    Mast forward/backward              deg 6 / 12 6 / 12
Overall length (without fork)                    -- mm 2545 2750
Total width   -- mm 1164 1225
Mast height (fork lowering)                   -- mm 2000 2070
Overall height fork raised                      With backrest                                      mm 4000 4100
Height to head guard                            -- mm 2070 2150
Turning raduis (outside)                             -- mm 2240 2515
Load distance -- mm 460 480
Min. right angle stacking aisle                 Not add load length & clearence                      mm 2280 2545
Speed      Max Travelling       Full / No load            km/h 18 /20 18 /19.5
   Lifting                    Full / No load                  mm/s 570 / 600 450 / 500
   Lowering               Full / No load                           mm/s 450 / 550 450 / 500
Max.drawbar pull                                    Power shift T/M     Full / No load                                        kg 1350 / 1000 1696 / 1190
Gradeability at 1.6km/h                             Power shift T/M     Full / No load                                        % 21 / 22 15 / 18
Truck weight  -- kg 3680 4280
Weight  distribution                                Full  load                Front / Rear              kg 5480 / 700 6445 / 825
   No  load                 Front / Rear             kg 1465 / 2215 1720 / 2560
Tires   Number  front / rear  2 / 2 2 / 2
Model  front  700-12-12PR 28x9-15-12PR
rear  600-9-10PR 6.50-10-10PR
Wheelbase -- mm 1600 1760
Tread    Front / rear mm 970 / 970 1000 / 970
Ground clearence      At lowest point (mast)                          mm 115 130
Frame  mm 170 200
Brake   Service brake  -- Hydraulic-foot pedal                                          Hydraulic-foot pedal
Parking brake -- Mechanical-hand lever                                   Mechanical-hand lever
Battery   Voltage / Capacity  V / AH 12 / 100 12 / 100
Engine                                            Model  -- NISSAN K21 NISSAN K21
Rated power  KW/rpm 31.2 / 2250 31.2 / 2250
Rated torque N·m/rmp 144 / 1600 144 / 1600
Number of cylinders -- 4 4
Displacement L 2.065 2.065
Fuel tank capacity  -- L 60 70
Transmission                                     Speed forward/backward                 mechanical/power shift mechanical/auto mechanical/auto
Operating pressure                               Hydraulic system pressure                kg/cm² 175 175
