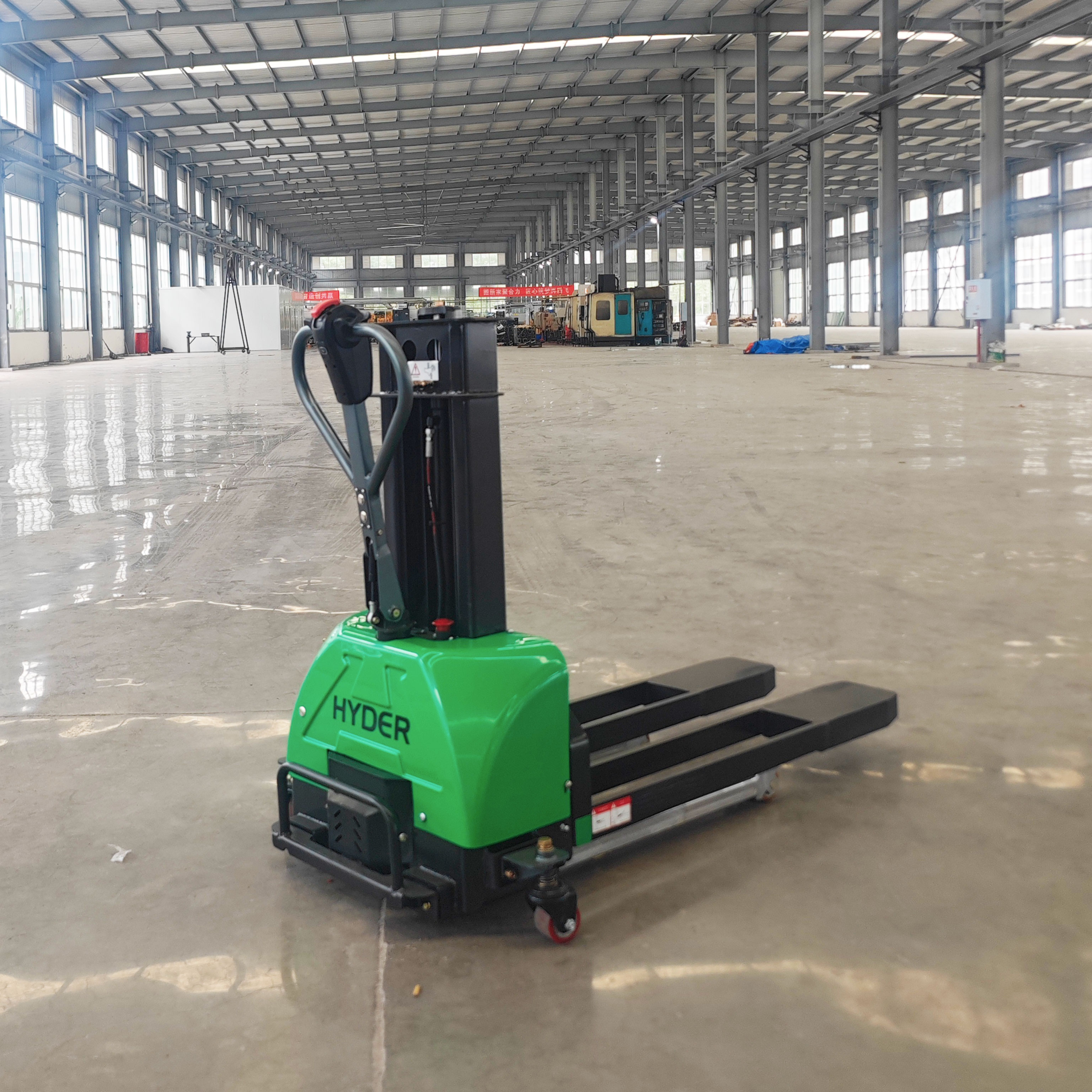

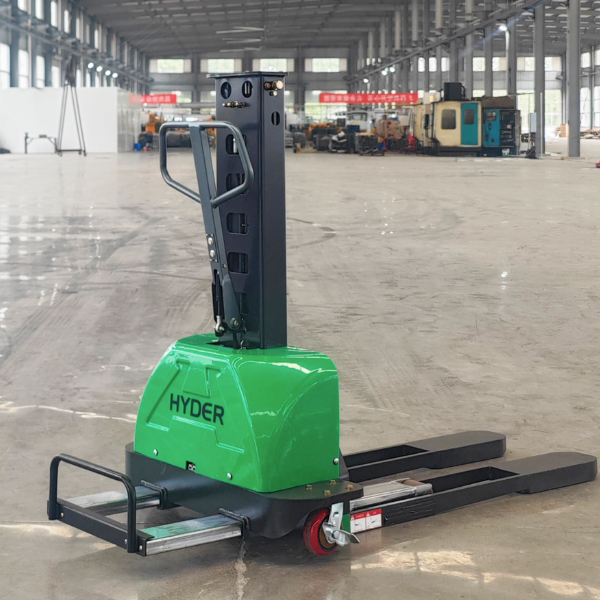

Hyder 700kgs Semi Electric Self Loading Stacker

HSLS700

1. Model: HSLS700

2. Max load capacity: 700kg

3. Lifting height:800mm,1000mm, 1300mm and 1600mm

4. Type of operation: Manual in driving and electric in lifting

5. Battery:  12V45Ah Lead-acid

6. Charging time: 7-8hours

7. Working time: 50work cycles(load and unload with load called 1 cycle)

facebooktwitteryoutubelinkedin
Contact Us

Inquire Now

Descriptions

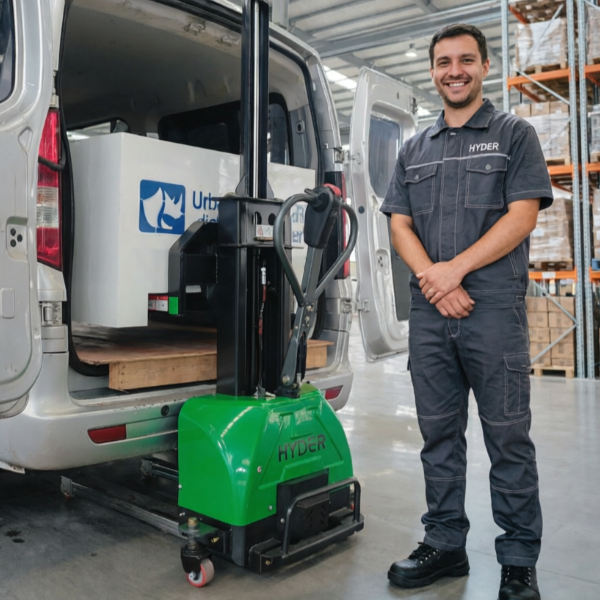

The Self-Loading Stacker is an innovative and unique choice for the delivery of goods thus meaning one product can replace your Tail-lift hand pallet truck, stacker, ramp. It is easy and quick to transport as can load itself into a van, pick-up, lorry, or trailer (with or without a load on the forks) to eliminate reloading problems at your destination.



The semi-electric model is the most economical solution to handle and lift heavy pallets of 500kg.



Specification
1 Standard
1.1 Brand   HYDER
1.2 Model   HSLS700
1.3 Power unit   battery
1.4 Operation type   Walkie
1.5 Load capality Q (kg) 700
1.6 Load center C (mm) 400
1.7 Front wheel tread W1 (mm) 405
1.8 Rear wheel tread W2 (mm) 690/810
1.9 Wheelbase L0 (mm) 788

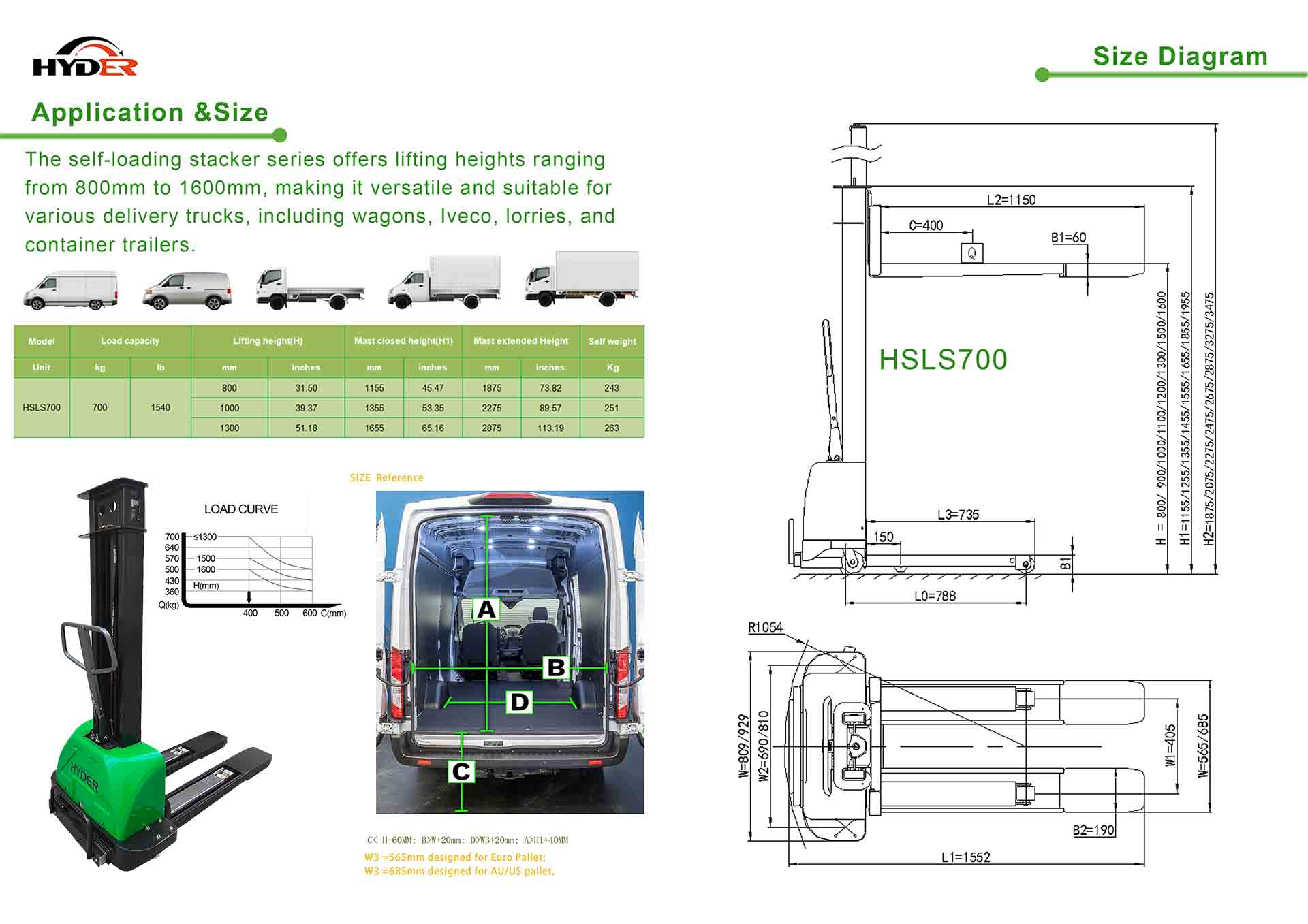

2 Dimension
2.1 Tire type front/rear PU
2.2 Front wheel mm φ80×60
2.3 Universal wheel mm φ100×50
2.4 Middle wheel mm Φ65×30
2.5 Lift height H (mm) 800/1000/1300/1600
2.6 Overall Height (Mast Closed) H1 (mm) 1155/1355/1655/1955
2.7 Overall Height(Mast extended) H2 (mm) 1875/2275/2875/3475
2.8 Total Length L1 (mm) 1552
2.9 Leg length L3 (mm) 735
2.10  Middle wheels position L4 (mm) 150
2.11  Total Width W (mm) 809/929
2.12  Fork outside width W3 (mm) 565/685
2.13 Min. turning radius Wa(mm) 1054
2.14 Fork length L2 (mm) 1150
2.15 Fork width B2 (mm) 190
2.16 Fork thickness B1 (mm) 60
3 Performance&Configuration
3.1 Lift Motor kw 0.8
3.2 Battery Voltage/Capacity V/Ah 12/45 lead acid
3.3 Lift/Lower Speed mm/s 55/100
4 Weight
4.1 Battery weight kg 13.5
4.2 Service weight(battery included) kg 243/251/263/276
